The MT ZOOM Maxle 12mm x 148mm boost thru axle is simple, light, strong and excellent value. At only 41g – drop some weight from your wheels.
Thread pitch 1.75mm. Length from inner washer to end 181.5mm.

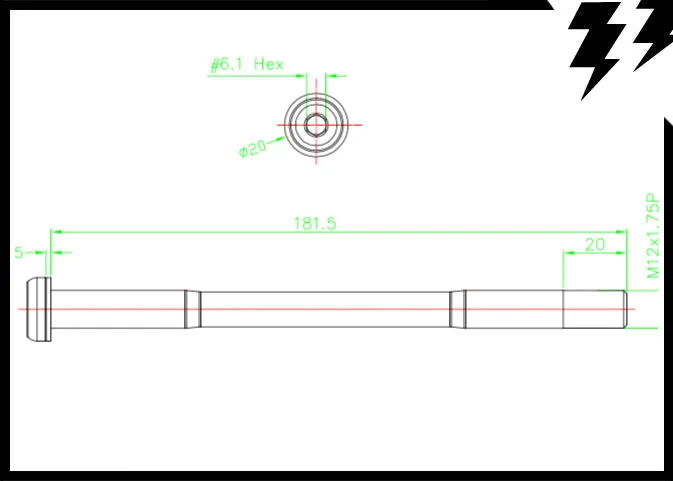

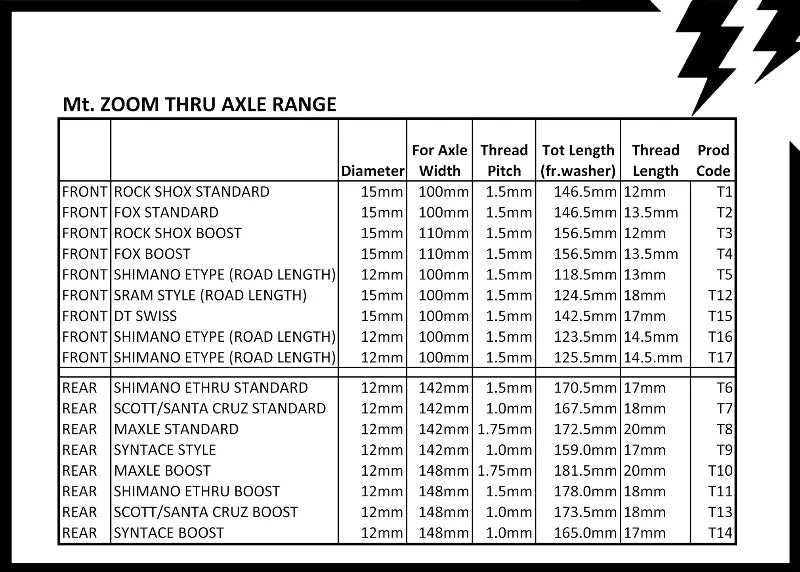

Note some boost frames are designed to still use the standard length axle. If you are replacing an axle on a boost frame it is worth measuring it's length to see whether you need a boost length axle or a standard length one. Cross reference with the picture on here which shows the dimensions of all our axles.
2-year warranty.
[split]
Key technical measurements:
- Length from inner washer to end of thru axle: 181.5mm
- Thread pitch: 1.75mm (the widest of the threads in the picture)
- Thread area length: 20mm
- Inner axle maximum width: 12mm
- Washer width: 1.5mm
- Product Code: T10
[split]
The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives 1.5mm extra length to the axle.
Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
